Features:

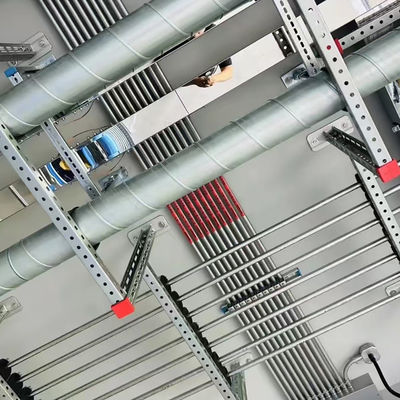

Unlike traditional load-bearing supports which only bear gravitational loads, seismic supports are designed with structures such as inclined braces and joints to specifically resist horizontal/vertical seismic forces generated by earthquakes. This prevents air ducts from falling off or breaking during an earthquake, and prevents secondary disasters such as fire spread and smoke blockage of evacuation routes caused by damage to the air duct system.
The transverse diagonal braces restrict the vertical swaying of the duct along the axis direction, while the longitudinal diagonal braces control the displacement along the axis. Together with the vertical supports, they form a spatial constraint system to ensure that the duct is constrained in all three axes (X, Y, and Z).
Technical Parameters:
| Product Name |
Seismic Duct Clamp |
| Function |
Anti-seismic Support |
| Adjustable |
Yes |
| Weight |
1.95kg |
| Usage |
Commercial And Industrial Buildings |
| Corrosion Resistance |
Yes |
| Installation |
Easy Assembly
|
| Package |
Carton Box |
| Fire Resistance |
Yes |
| Material |
Galvanized Steel |
| Processing Service |
Bending, Welding, Punching, Decoiling, Cutting
|
| Other Names |
Tremor Proof Duct Mounting Bracket, Ventilation pipe hanger |
Applications:
High-rise scenario: In super-tall buildings (such as office buildings over 200 meters), the duct system is long and heavy. Anti-seismic brackets can prevent the ducts from tearing due to lateral displacement of the structure;
Underground scenario: If the ducts fall in subway tunnels, it can easily cause traffic disruption. Anti-seismic brackets ensure the safety of the pipelines in the tunnels by maintaining a fixed spacing (usually ≤ 6m).
Packing and Shipping:
Product Packaging:
The Seismic Bracing for Ductwork comes in a sturdy cardboard box that is designed to protect the product during shipping and storage. The box measures 12 inches by 8 inches by 6 inches and weighs approximately 2 pounds. Inside the box, the product is securely packed with foam inserts to prevent any damage during transit.
Shipping:
We offer standard shipping for the Seismic Bracing for Ductwork product. Orders are processed within 24 hours and shipped within 2-3 business days. Shipping rates are calculated at checkout based on the destination and shipping method selected. We ship to all US states and territories, as well as select international locations. Customers can track their shipments using the tracking number provided in the shipping confirmation email.
FAQ:
What is the place of origin of the Seismic Bracing for Ductwork?
The Seismic Bracing for Ductwork is manufactured in Hebei, China.
2.
Is the Seismic Bracing for Ductwork certified?
Yes, the Seismic Bracing for Ductwork is certified with ISO9001.
3.
What is the minimum order quantity for the Seismic Bracing for Ductwork?
The minimum order quantity for the Seismic Bracing for Ductwork is negotiable.
4.
How much does the Seismic Bracing for Ductwork cost?
The price of the Seismic Bracing for Ductwork is negotiable.
5.
What is the delivery time for the Seismic Bracing for Ductwork?
The delivery time for the Seismic Bracing for Ductwork is 15-30 work days.
